Coldroom and Freezer room doors

We can manufacture doors for chiller coldrooms and freezer storage areas (both hinged and sliding varieties). Delivery time for standard products is 2 - 3 weeks.


Hinged doors for Coldrooms and Freezer rooms

Technical Description

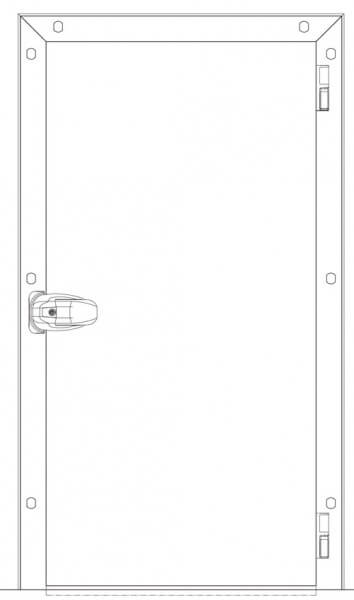

Zeichnung einer Drehtür für Kühl- und Tiefkühlhäuser

  • PU foam (CFC-free)
  • suitable for use from 0°C to 12°C and -2°C to –25 °C respectively
  • easily replaceable seal
  • Cladding is plastic-coated steel sheet
  • White Food Safe Laminate coating
  • Clamping frame for attachement to PUR panels and masonary from 60 mm
  • Heated frame for freezer-doors
Zeichnung einer Kühlhaudrehtür PDDZeichnung Kühlhausdrehtür PFD



Ansicht Kühlhausdrehtür 1Ansicht Kühlraumdrehtür 2Ansicht Kühlraumdrehtür 3




Sliding door for Coldrooms and Freezer rooms

Technical Description

Zeichnung einer Schiebetüt für Kühl- und Tiefkühlhäuser

  • PU foam (CFC free)
  • suitable for use from 0°C to 12°C and -2°C to –25 °C respectively
  • Running rail support from aluminium profile
  • Standard cladding or coated steel or stainless steel
  • White food safe laminate coating
  • Replaceable door-seal
  • Freezer door comes with frame heating or threshold heating
  • Fittings come in anodised aluminium
Zeichnung Kühlhausschiebetür PDEZeichnung Kühlhausschiebetür PFE

Ansicht Kühlhauschiebetür

Coldroom hinged door

Width
mm
Height
mm
650 1700
650 2000
800 1700
800 2000
950 1700
950 2000
950 2200
1100 2000
1100 2200
1100 2400
1250 2000
1250 2200
1250 2400
1400 2200
1400 2400
1550 2200
1550 2400
1430 2730
1430 3030
1430 3330
1430 3630
Cold store chiller door 2

Light sliding doorr:

Width
mm
Height
mm
800 1900
800 2200
800 2400
950 1900
950 2200
950 2400
1100 1900
1100 2200
1100 2400
1250 1900
1250 2200
1250 2400
1400 1900
1400 2200
1400 2400
1550 1900
1550 2200
1550 2400
1730 2130
1730 2430
1730 2730
1730 3030
2030 2130
2030 2430
2030 2730
2030 3030

Coldroom hinged double-door:

Width
mm
Height
mm
1250 2000
1250 2200
1250 2400
1400 2200
1400 2400
1550 2200
1550 2400
1430 2730
1430 3030
1430 3330
1430 3630
1730 2130
1730 2430
1730 2730
1730 3030
1730 3330
1730 3630
2030 2130
2030 2430
2030 2730
2030 3030
2030 3330
2030 3630
2330 2430
2330 2730
2330 3030
2330 3330
2330 3630

Heavy Sliding Door:

Width
mm
Height
mm
1430 2130
1430 2430
1430 2730
1430 3030
1430 3330
1430 3630
1730 2130
1730 2430
1730 2730
1730 3030
1730 3330
1730 3630
2030 2130
2030 2430
2030 2730
2030 3030
2030 3330
2030 3630
2330 2130
2330 2430
2330 2730
2330 3030
2330 3330
2330 3630
2630 2130
2630 2430
2630 2730
2630 3030
2630 3330
2630 3630
2930 2130
2930 2430
2930 2730
2930 3030
2930 3330
2930 3630
